The Ultimate Off-Grid Freedom: Power Your EV Anywhere with Solar, Wind & DIY Solutions
Key Insights:
Off-grid EV charging solutions provide independence from grid outages, allowing owners to power their vehicles during extreme weather events or in remote locations without established charging infrastructure.
Solar power systems are the most accessible off-grid charging solution, with home installations costing £8,500-£10,000 and potentially saving £700+ annually compared to public charging.
Battery storage is essential for effective off-grid charging, with a minimum recommended capacity of 10kWh for most UK family EVs, though 15-20kWh offers greater flexibility and extends battery life.
Electric vehicles make up, approximately, 4% of all vehicles registered on UK roads. For reference, there are around 34 million cars on UK roads, of which 1.3 million are EVs. At the beginning of 2025, there were 37,011 charging locations dotted across the country - this includes everything from 3kW to 150kW chargers.
The growing popularity of electric vehicles brings exciting opportunities for sustainable transportation, but it also presents unique challenges when traditional power sources aren't available. Off-grid charging solutions have become increasingly vital for EV owners facing power outages, those exploring remote locations beyond the reach of charging networks, and individuals committed to maximising their sustainability goals through renewable energy.
As extreme weather events become more common and adventurous drivers push the boundaries of where EVs can travel, understanding your off-grid charging options isn't just convenient - it's becoming essential for the modern electric vehicle owner.
Why Do People Need Off-Grid EV Charging?
You’re probably reading this article to answer this question, so why do people need off-grid EV charging? Let’s have a look!
Electric vehicle owners are increasingly looking beyond traditional grid connections for their charging needs, and for good reason. Off-grid charging solutions offer multiple benefits that address practical concerns and personal values.
Independence From Fluctuations And Outages
This is perhaps the most immediate advantage. When severe weather strikes or infrastructure fails, grid-tied charging stations become useless. Off-grid systems allow you to power your vehicle regardless of what's happening with the local utility grid, providing peace of mind and continuous mobility.
Environmentally Friendly
Environmentally friendly charging options represent another compelling reason to go off-grid. By harnessing renewable energy sources like solar or wind power, EV owners can achieve zero-emission transportation. This creates a complete eco-friendly cycle where the vehicle and its energy source minimise environmental impact, which is brilliant!
Cost-saving Potential
Now, this one shouldn’t be overlooked. While the initial investment when going off-grid can be significant, many systems pay for themselves through eliminated utility bills and potential incentives. Solar-powered charging systems, for instance, can provide "free" energy for decades after the initial setup costs.
Flexibility For Remote Locations
Flexibility for remote locations opens endless possibilities for EV owners. Whether you're camping in a national park, visiting a rural cabin, or travelling through areas with limited infrastructure, off-grid charging means you're not tethered to established charging networks. This expanded range can transform how and where you use your electric vehicle.
Emergency Preparedness
Off-grid charging adds another layer of value to this solution. In crises, your EV's battery can become a valuable power source for essential devices and tools. With bidirectional charging capabilities, some systems even allow your vehicle to power your home during outages, turning your car into a mobile energy reserve.
Solar Power: The Leading Off-Grid EV Charging Solution
Solar power stands as the cornerstone of sustainable off-grid EV charging, using energy from the sun to power your journeys. This renewable solution offers independence and environmental benefits while providing reliable charging capabilities almost anywhere the sun shines. Even in the UK, where sunny days might seem limited, modern solar technology uses daylight (not just direct sunlight) so fear not!
Home Solar Panel Systems For EV Charging
Component Overview
A complete solar EV charging system consists of several key components working together:
Solar panels: Capture sunlight and convert it to electricity, with most home setups requiring between 8-12 panels depending on their efficiency rating.
Inverter: Transforms the DC electricity from your panels into AC power your car can use
Charge controller: Manages the flow of electricity to prevent overcharging and system damage
Battery storage: Essential for true off-grid capability, allowing you to store excess energy for nighttime or cloudy day charging
Installation Considerations
Installation should account for both physical space and optimal positioning:
Most EV-capable solar systems require 20-30 square metres of unshaded roof space with southern exposure (in the northern hemisphere),
Ground-mounted systems offer alternatives for homes with unsuitable roofs but need appropriate space. This is a great alternative because you don’t have to worry about planning permission.
The weight of panels and the potential need for roof reinforcement should be evaluated by a professional installer.
Permit requirements and electrical code compliance must be addressed before installation with the Microgeneration Certification Scheme (MCS).
Cost Analysis and ROI
A complete solar EV charging system can cost anywhere between £8,500 to £10,000. This cost includes the solar panels, storage, charger and installation costs. Important to note that this is before any incentives,
By combining an EV charger with solar energy, you can save £700+ per year compared to charging publicly, which is incredible!
According to SunSave, this setup can power your car with 82% of solar energy throughout the year. You can even use the excess energy in your home.
It is important to note that EV charging is considerably cheaper than filling up your car with fuel. Use our EV savings calculator to see how much you could save on running costs with an EV compared to a petrol or diesel alternative.
Recommended Products and Setups
If you’re interested in charging your electric car with solar power, Zappi by Myenergi and Hypervolt Home 3 Pro are both recommended EV chargers known for their solar integration capabilities.
It is extremely important to do your research and compare providers before committing!
Portable Solar EV Charging Solutions
If you find yourself somewhere where electricity isn’t readily available, portable solar EV charging solutions can come in handy! Here’s what you need to know…
Portable Solar Panel Specifications
When selecting portable solar panels for EV charging, specific technical requirements must be met:
Minimum wattage: Most effective portable systems start at 400W, with 800-1200W providing more practical charging capabilities,
Voltage compatibility: Look for systems that output at least 220-240V AC through an inverter,
Folding efficiency: The best portable panels offer at least 20-23% energy conversion efficiency,
Durability features: Weather-resistant construction (IP65 rating or higher) ensures reliability in various conditions,
Weight considerations: Complete systems typically weigh 15-30kg, with the most travel-friendly options under 20kg.
Power Station Requirements
Portable solar setups require appropriate power stations to store and deliver energy:
Battery capacity: Minimum 1.5kWh capacity, with 3-5kWh recommended for meaningful EV charging,
Output rating: Must support at least 2000W continuous output with 3000W+ surge capacity,
Charging ports: Should include Type 2 connector capability or standard 3-pin with appropriate adapters,
BMS (Battery Management System): Essential for preventing damage and ensuring safety,
Expandability: Consider systems that allow additional battery connections for increased capacity.
Setup and Operation Guidelines
Using portable solar EV charging systems effectively requires proper procedure:
Position panels in direct sunlight, angling toward the sun (30-45 degrees is typically optimal),
Connect panels to the power station using the manufacturer's cables and connectors,
Allow the power station to charge fully before connecting to your vehicle,
Use appropriate adaptors to connect the power station to your EV's charging port,
Monitor the system during charging to ensure consistent power flow,
Store components in protective cases when not in use to maximise their lifespan.
Practical Limitations and Charging Times
Understanding real-world performance helps set appropriate expectations:
A 1000W solar array in optimal conditions might generate 5-6kWh per day in summer (less in winter and cloudy conditions),
This translates to approximately 15-25 miles of added range per day for most EVs,
Complete charging of an EV battery is rarely practical with portable systems,
Charging typically requires 2-3 days of good sunlight for meaningful range extension,
Weather dependency means having backup charging plans is essential.
Top Portable Solar Chargers for EVs
Several standout products offer reliable performance for on-the-go EV charging:
Jackery Solar Generator 2000 Pro: Combines 2.1kWh capacity with compatible 200W panels for a well-integrated system,
EcoFlow DELTA Pro: Expandable to 25kWh with additional batteries, supporting serious off-grid capability,
Bluetti AC200MAX: Offers excellent value with LiFePO4 battery chemistry for extended cycle life,
Goal Zero Yeti 3000X: Rugged design with an established reputation for reliability in extreme conditions,
Anker SOLIX F3800: New market entrant with impressive 6000W output capability when multiple units are connected.
Each solution offers different advantages depending on your specific needs, from maximum portability to the highest capacity or fastest charging capability.
Wind Turbine EV Charging Systems
Small-scale wind power offers UK homeowners an alternative or complementary approach to solar for off-grid EV charging, particularly valuable during winter months when solar production decreases but wind resources typically increase.
Small-Scale Wind Turbine Options
Microturbines (400W-1kW): Models like the UK-manufactured FuturEnergy AirForce 1 or Marlec Rutland 1200 provide supplementary charging capability
Small domestic turbines (1.5kW-3kW): The Kingspan KW3 or Britwind R9000 offer meaningful charging capacity for occasional EV top-ups
Medium domestic systems (5kW-10kW): The Evance R9000 or the Scottish-made Gaia Wind 133 can provide substantial charging power but require larger properties
Hybrid Solar-Wind Solutions
Combined systems offer year-round generation potential in the UK climate,
Solar provides reliable summer power while wind performs better in autumn/winter,
Integrated controllers like those from Victron Energy manage dual input sources,
Hybrid inverters are designed for UK grid standards,
This approach will typically deliver more annual energy than either technology alone!
Installation Requirements
Planning permission likely needed for turbines over 3m in height in most areas
Minimum 0.5 acres recommended with a good distance from buildings and trees,
Professional installation essential for safety and warranty compliance,
Concrete foundation or guyed tower system required based on soil conditions,
Must comply with UK microgeneration installation standards!
Energy Storage Considerations
Battery storage is an essential component of any wind-based EV charging system, serving as the critical buffer between intermittent wind generation and the consistent power needs of an EV. Without the right storage, the variable nature of wind would make reliable charging impossible, potentially leaving vehicles unprepared when they’re needed most.
Quality lithium battery systems from manufacturers like Tesla, GivEnergy, or Powervault provide the high discharge rates necessary for effective EV charging, with a minimum recommended capacity of 7kWh to support practical overnight charging sessions.
The battery management system (BMS) must be specifically designed to handle the variability of wind generation. During periods of excessive wind production, "dump loads" like water heaters or space heating systems can be incorporated into the system design to utilise surplus energy rather than wasting this valuable resource.
This approach to energy management means electricity generated by wind will be captured effectively and will be available on demand for EV charging, regardless of the current weather conditions.
Geographic Suitability Factors
Of course, it is very important to consider how your location will impact the amount of electricity produced.
Rural and coastal locations yield the best results with annual average wind speeds above 5m/s, like parts of Northern Scotland, Wales and Northern England,
Urban and suburban areas are typically unsuitable because of the obstruction caused by buildings.
Check the UK Wind Speed Database (NOABL) for site-specific data
Wind turbine EV charging is a substantial investment - there’s no denying that - but can provide a reliable off-grid solution in suitable locations, particularly when combined with solar in a hybrid system to balance seasonal variability.
Battery Storage Solutions for Off-Grid EV Charging
Battery storage systems form the crucial link between intermittent renewable energy generation and reliable EV charging, enabling true energy independence regardless of when the sun shines or wind blows.
Battery Types and Specifications
Lithium Iron Phosphate (LiFePO4): Most popular for off-grid EV charging in the UK due to safety, 3000+ cycle lifespan, and cold weather performance.
Lithium NMC: Higher energy density but shorter lifespan (2,000-2,500 cycles) and greater thermal concerns.
Lead-Acid: Budget option with a shorter lifespan (500-800 cycles) and larger footprint, but lower upfront costs and recyclability benefits.
Flow Batteries: Emerging technology with excellent longevity and safety, though currently expensive and bulky for residential applications.
Critical specifications include depth of discharge (DoD), round-trip efficiency (85-95% for quality systems), and maximum continuous discharge rate (minimum 7kW recommended for meaningful EV charging).

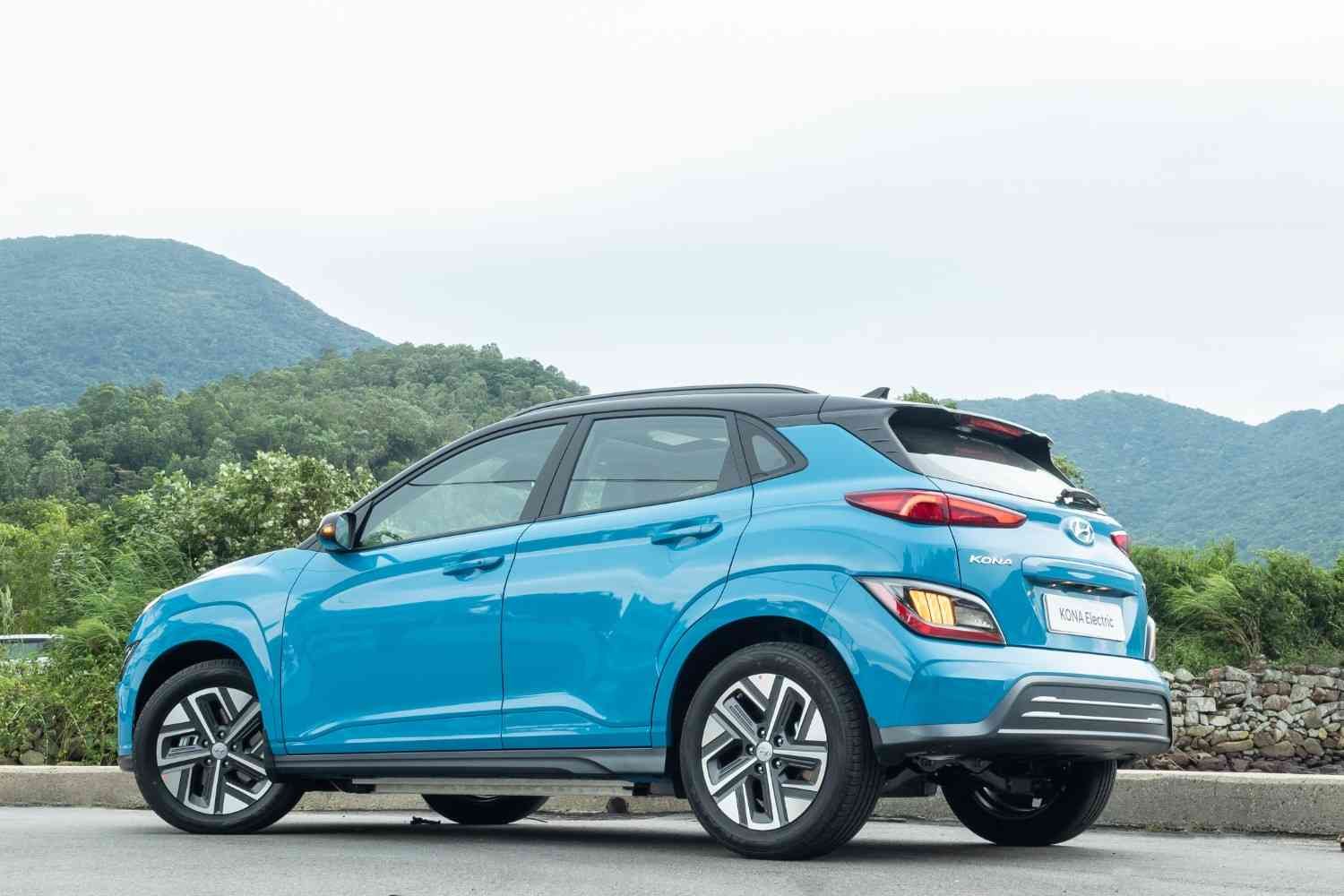

Capacity Planning for Different EV Models
Battery storage requirements vary significantly based on vehicle specifications:
Compact EVs (Nissan Leaf, Mini Electric): 7-10kWh storage provides meaningful partial charges,
Mid-range EVs (VW ID.3, Hyundai Kona): 10-15kWh recommended for practical charging,
Premium/larger EVs (Tesla Model 3, Audi e-tron): 15-20kWh+ for reasonable charging capability,
For regular charging of most UK family EVs, a minimum storage capacity of 10kWh is practical, but 15-20kWh offers greater flexibility and reduced depth of cycling, extending battery life.
Integration with Renewable Energy Sources
Effective integration of battery storage with renewable energy sources requires a carefully designed system to maximise efficiency and reliability.
Smart inverters/chargers with load-shifting capabilities can serve as the intelligence hub, prioritising renewable inputs and managing energy flows based on real-time conditions. Advanced energy management systems can enhance performance by forecasting generation patterns and intelligently balancing charging needs with available resources.
Many sophisticated systems also incorporate weather monitoring and prediction algorithms, optimising charging cycles based on expected renewable production to maximise self-consumption and minimise reliance on external power sources.
Recommended Battery Systems
Several systems offer particularly good performance for UK off-grid EV charging:
Tesla Powerwall+: 13.5kWh capacity with integrated inverter and excellent app control,
BYD Battery-Box Premium: Modular system (expandable from 5.1kWh to 22.1kWh) with high power output
Pylontech US3000: Cost-effective solution with flexible expansion options
GivEnergy: UK-based system with excellent local support and smart energy management
SolaX Triple Power: High-performance system compatible with SolaX hybrid inverters
Future Innovations in Battery Technology
The landscape for off-grid charging is rapidly evolving with:
Solid-state batteries which promise higher energy density and faster charging,
Vehicle-to-home (V2H) technology allows bidirectional energy flow between home systems and EVs - this one is particularly exciting!
Advanced materials reduce dependency on rare earth elements,
AI-driven energy management designed to optimise charging cycles based on usage patterns,
"Second-life" EV batteries are being repurposed for stationary storage, reducing costs and environmental impact.
Continued improvements in battery chemistry and management systems will make off-grid EV charging increasingly practical and affordable across the UK in the coming years.
Alternative Off-Grid Charging Methods
While solar and wind dominate the off-grid EV charging landscape, several alternative technologies offer viable solutions for specific scenarios and locations across the UK.
Wood Gasifiers and Biomass Solutions
Small-scale wood gasifiers and biomass generators offer an alternative approach to off-grid EV charging by converting organic materials like wood chips or pellets into usable electricity. These UK-made systems produce power by transforming biomass into combustible gas, with the added benefit of generating heat that can be captured for home warming.
The fixed installations do not require extensive space but they do need appropriate fuel storage areas. Operating expenses vary based primarily on your access to local biomass resources, making these systems particularly advantageous for woodland property owners. This solution is best suited for rural locations where biomass materials are readily available and there's adequate space for both the equipment and fuel storage.
Micro-Hydro Power Options
For properties with flowing water sources, micro-hydro offers exceptionally reliable charging:
Even small streams with 1-2m head height can generate constant power with appropriate turbines,
Solutions like PowerSpout and Energy Systems & Design offer turbines suitable for UK water conditions,
Typical residential systems produce 0.5-5kW depending on flow rate and head height,
Planning permission and Environment Agency licensing are required for most UK installations,
When available, provides the most consistent renewable generation for EV charging with 24/7 operation.
Hydrogen Fuel Cell Considerations
Hydrogen systems offer unique benefits despite higher costs:
Compact systems like the Intelligent Energy 2.5kW fuel cell provide on-demand power independent of weather,
Require hydrogen storage (typically compressed gas cylinders for residential applications),
Zero-emission operation with only water as a byproduct - which is brilliant,
Higher cost per kWh than other options but this is rapidly improving,
This solution is most practical as a backup to primary renewable systems rather than a sole charging source,
Mechanical Energy Storage Potential
Innovative mechanical storage methods offer alternatives to chemical batteries:
Gravity-based systems like Gravitricity and Energy Vault store energy by raising weights,
Compressed air energy storage (CAES) captures energy in pressurised containers,
Flywheel systems store energy in a rotating mass,
Currently more suited to community-scale implementations than individual homes,
Particularly attractive for locations where battery installation is challenging due to temperature extremes or fire regulations.
Each alternative solution has specific niche applications where it may outperform conventional renewable options, particularly in regions with specific resource advantages or constraints. For most UK homeowners, these technologies work best as supplements to core solar or wind systems rather than primary charging solutions.
Commercial Off-Grid EV Charging Stations
As EV adoption grows across the UK, commercial off-grid charging stations are emerging as vital infrastructure for remote areas, tourist destinations, and businesses seeking sustainable transportation solutions.
Standalone Solar Charging Stations
Purpose-built commercial solar EV chargers offer turnkey solutions for businesses and public locations:
Prefabricated units like the SolarSense EV Charging Carport and 3ti Papilio provide complete charging infrastructure with integrated solar generation,
Typical commercial systems combine 7-22kW charging capabilities with 20-50kWh battery storage,
Advanced systems include weather protection, security features, and remote monitoring,
Most units require 30-50m² of space for optimal solar exposure and vehicle access,
Installation would typically take 2-5 days with minimal groundwork for rapid deployment.
Remote Location Deployment Strategies
Off-grid commercial chargers address the "chicken and egg" problem of remote area EV adoption:
Strategic placement along scenic routes and tourist destinations creates "charging corridors",
Resilient designs with reinforced panels and components suitable for challenging UK environments,
Cellular or satellite connectivity would be needed to make sure payment processing and remote diagnostics are possible,
Oversized battery storage compensates for extended periods of low generation - in northern regions in particular!
Hybrid generation (solar + wind) increases reliability in the Scottish Highlands and similar locations.
What Is The Return On Investment?
Arguably, the most important question is: what is the return on investment with commercial off-grid EV charging stations? Here’s what needs to be considered:
Destination charging model where businesses offer free or subsidised charging to attract customers (popular with hotels, restaurants, and retail),
Premium service model with higher per-kWh rates justified by unique location access,
The advertising-supported model incorporates digital displays for additional revenue,
Subscription services offering preferential rates for regular users,
Local authority partnerships sharing costs for tourism development.
The return on investment here would typically range from 3-7 years depending on usage rates, with faster returns in popular tourist areas.
Practical Considerations For When Charging Off-grid
Most of these points have been covered earlier in this article, but here are the main things to consider and to be aware of when charging your electric car off-grid:
Charging Speed Limitations
Off-grid EV charging typically delivers slower rates than grid-connected options:
Most solar and wind systems provide 3.5-7kW charging (compared to 7-22kW for home wall boxes),
This translates to approximately 10-20 miles of range per hour of charging,
Battery storage capacity often becomes the limiting factor, not the generation potential,
Expect to plan for extended charging sessions rather than quick top-ups,
Consider your daily range requirements and adjust expectations accordingly.
Weather Dependency Factors
Nature directly impacts charging reliability:
Solar generation can drop significantly during heavy cloud cover or winter months,
Wind turbines require minimum wind speeds to begin generation,
Seasonal variations significantly affect system performance across the UK,
Multiple generation sources provide the best year-round reliability,
Battery storage sized for 2-3 days of autonomy offers reasonable weather resilience.
Maintenance Requirements
Off-grid systems require more attention than grid-connected alternatives:
Solar panels need cleaning 2-4 times annually, especially in high pollen or dusty areas,
Wind turbines require annual inspection and periodic bearing maintenance,
Battery systems need regular monitoring and eventual replacement (5-15 years depending on the type),
Inverters typically need replacement after 10-15 years,
Control systems require occasional software updates for optimal performance.
Cost vs. Convenience Analysis
Understanding the true economics helps set realistic expectations:
Per-mile charging costs for off-grid systems range from economical (once the equipment is paid for) to expensive (including equipment costs),
Convenience value varies dramatically by location - essential in remote areas, optional in grid-served locations,
Environmental benefits include guaranteed renewable charging and reduced grid strain
Resilience value becomes significant during power outages or energy price spikes
The social value of independence and self-sufficiency motivates many users regardless of economics
Future-Proofing Your Setup
Planning for technology evolution ensures long-term viability:
Design with expansion capacity for larger battery storage as EV batteries increase in size,
Consider charging standards compatibility and upgrade paths as technology evolves,
Include smart control systems that can be updated as energy management improves,
Plan for bi-directional charging capability to utilize vehicle batteries as home storage,
Use modular components where possible to allow partial upgrades rather than complete system replacement.
Off-grid charging represents both a practical solution for specific circumstances and a lifestyle choice for many. While it requires more planning and attention than standard grid charging, it delivers unique benefits in sustainability, resilience, and independence that many EV owners find compelling as the UK transitions to an electric transportation future.
If you’re interested in EV salary sacrifice or are looking to get closer to net-zero targets at your company, check out our website! Employees who utilise their company’s electric car salary sacrifice scheme can save 20-50% on the cost of a car.
Last updated: 14.03.25
